A19711 Air Compressor Check Valve | Replacement for Obsolete Compressor Systems
Air Compressor Won’t Hold Pressure or Hard to Start?
A19711 Check Valve Replacement Guide + Fix
A19711 check valve was removed from service stock and is No longer available (NLA) from the manufacturer, but we have it.
Common Symptoms of a Failed Check Valve
If your compressor is doing any of this:
Hisses after shutting off
Won’t restart without tripping breaker
Loses tank pressure overnight
Air leaks from the unloader line
This check valve is a common cause.
A failed A19711 check valve often causes these symptoms above
This is a common failure point on many compressors.
How to Confirm It’s the Check Valve
Quick Check:
1. Turn on compressor and fill tank
2 Turn compressor off
3. Listen near the pressure switch
4. If you hear air leaking for more than a few seconds → check valve likely bad
Used on select DeVilbiss, Craftsman, and Porter-Cable air compressors.Please verify fitment by model number below.
| Model | Model | Model | Model |
|---|---|---|---|
| 5Z598C Type 1 | 919-16735 Type 0 | ACBF420 Type 0 | ACBF420 Type 1 |
| AF2512 Type 0 | AF2520 Type 0 | AF2520 Type 1 | AF320 Type 0 |
| AF320 Type 1 | AF320 Type 2 | AF3520 Type 0 | CF1540 Type 0 |
| CF2400 Type 0 | DAC-7128 Type 0 | DAC-7128 Type 2 | DF412 Type 2 |
| DF430 Type 0 | DF430 Type 2 | DF5020 Type 0 | DF5030 Type 0 |
| EXF5020 Type 0 | EXFC5020 Type 0 | F14 Type 0 | F18 Type 0 |
| F18 Type 1 | F18 Type 2 | F18 Type 3 | F18 Type 4 |
| F212 Type 0 | F212 Type 1 | F212 Type 2 | F212 Type 3 |
| F220 Type 0 | F220 Type 1 | F220 Type 2 | F220 Type 3 |
| F2512 Type 0 | F2512 Type 2 | F2520 Type 0 | F2520 Type 1 |
| F2520 Type 2 | F2520 Type 3 | F312 Type 0 | F312 Type 1 |
| F312 Type 2 | F312 Type 3 | F312 Type 4 | F312 Type 5 |
| F320 Type 0 | F320 Type 1 | F320 Type 2 | F3520 Type 0 |
| F3520 Type 1 | F3520 Type 2 | F412 Type 0 | F420 Type 0 |
| F420 Type 1 | F420 Type 2 | F5020 Type 0 | F5030 Type 0 |
| F5030V Type 0 | F753 Type 0 | F758 Type 0 | F758 Type 1 |
| FIC100E3D Type 0 | FIC100E3D Type 1 | FIFC420 Type 0 | FIFC420 Type 1 |
| FTV530 Type 1 | FTV530 Type 2 | FTV560V Type 1 | FTV560V Type 2 |
| FTV630 Type 0 | FTV630 Type 1 | FTV660V Type 3 | FTV660V Type 4 |
| FTV660V Type 5 | GFC5020 Type 0 | GFTVC6030 Type 0 | HF412-WK Type 0 |
| HF5030-WK Type 0 | HF5030V Type 0 | HFA5030V Type 0 | IR100E8AD Type 0 |
| IR100E8AD Type 2 | IR100E8AD Type 3 | IR500TVE30 Type 1 | IR500TVE30 Type 2 |
| IR500TVE60V Type 1 | IR500TVE60V Type 2 | IR500TVE60V Type 3 | IRC500TVE30 Type 1 |
| IRC500TVE30 Type 2 | IRC500TVE60V Type 1 | IRC500TVE60V Type 2 | IRC500TVE60V Type 3 |
| IRF18 Type 4 | IRF312 Type 0 | IRF312 Type 1 | IRF420 Type 0 |
| IRF420 Type 1 | IRF420 Type 2 | IRF5020 Type 0 | IRF5030 Type 0 |
| IRF5030V Type 0 | IRFC18 Type 4 | IRFC420 Type 0 | IRFC420 Type 1 |
| IRFC5020 Type 0 | IRFCTV630 Type 0 | IRFCTV630 Type 1 | IRFCTV660V Type 3 |
| IRFCTV660V Type 4 | IRFTV630 Type 0 | IRFTV630 Type 1 | IRFTV660V Type 3 |
| IRFTV660V Type 4 | IRFTV660V Type 5 | MAC1200 Type 1 | MAC1200 Type 2 |
| PAF3520 Type 0 | PAF3530 Type 2 | PAF430 Type 0 | PAF430 Type 1 |
| PAF430 Type 2 | PAFC212 Type 0 | PAFC3520 Type 1 | PAFC3520 Type 2 |
| PAFC430 Type 0 | PAFC430 Type 1 | PAFC5020 Type 0 | PAFC5030 Type 0 |
| PAFCTV530 Type 0 | PAFCTV530 Type 1 | PAFCTV530 Type 2 | PAFCTV560V Type 1 |
| PAFCTV560V Type 2 | PAFCTV630 Type 0 | PAFCTV630 Type 1 | PAFCTV660V Type 3 |
| PAFCTV660V Type 4 | PAFTV530 Type 1 | PAFTV530 Type 2 | PAFTV560V Type 1 |
| PAFTV560V Type 2 | PAFTV630 Type 0 | PAFTV630 Type 1 | PAFTV660V Type 2 |
| PAFTV660V Type 3 | PAFTV660V Type 4 | PAFTV660V Type 5 | PRF5020 Type 0 |
| PRF5020-WK Type 0 | PRFC5020 Type 0 | PRFC5020-WK Type 0 |

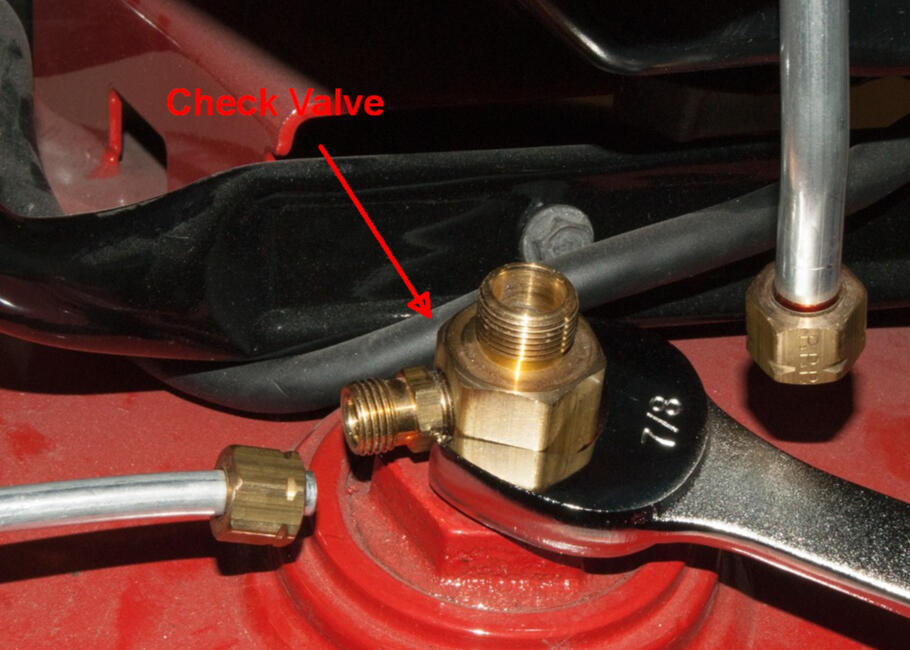

Common questions:Q: Where is my check valve located?

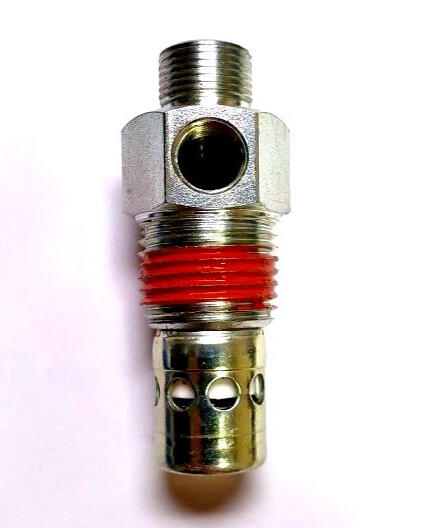

A: It is found at the end of the pump supply tube where it enters the air tank. 90% of it is located in your tank! This is why the check valve above doesn't look like the one on your unit.
Q Why do check valves fail?
A There is an internal spring that holds a disc closed when the air compressor turns off. When the spring rusts or the disc becomes brittle and cracks, this allows air to back-feed into the pump as well as the small pressure tube Schrader valve.
Q: How do I remove my check valve?
1st Turn off your air compressor.
2nd Drain all of the air pressure from your air compressor tank.
3rd Follow the air supply tube from your pump head and find where it enters your tank. There should be a brass compression nut around the tube which connects to threads protruding from your air tank.
4th Loosen and remove this supply tube from the check valve.
5th Using an appropriately sized socket, remove the check valve from the tank.
6th Now you have removed your rusty and defective check valve causing you all of your problems.
7th Install thread sealant on the new check valve (if sealant is not supplied on the check valve) and carefully thread it into the tank.
8th Tighten the check valve snug, but do not overtighten.
9th Reverse the steps above to complete.
Buy A19711 Check Valve Now
(These are getting harder to find)
Check valves are critical for proper pressure retention and compressor start-up.Failure of this part often causes hard starting, air bleed-down, or repeated cycling.Because this is an obsolete OEM component, returns are accepted only for items received not as described.Also called:
-tank check valve
-compressor non-return valve
-one-way compressor valve
Air compressor check valve replacement
A19711 check valve replacementPlease confirm compatibility before ordering.
Make sure your part matches visually before ordering.
Questions about fitment or availability?
[email protected]
